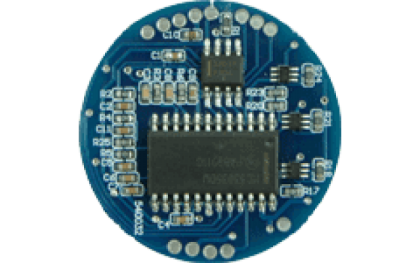

The D30/3/1Q-I1 driver was developed for the L and M series blowers working in 1-Quadrant applications (continuous operations).
Features:
This driver can be integrated in the C55H1, C65M1, C75M1 and C95M1, but can also be sold individually.
Drives one BLDC motor (8V to 30V, up to 3A).
Robust power supply interface from 8V to 30V.
Accepts 1 - 2.8V input for speed command.
Over-current protection provided.
Bridge-type driver uses Pulse Width Modulation.
Speed output - one pulse per revolution.
Suitable for high shock and vibration environments.
Dimensions: Ø35.6mm x 5mm.
For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact us and describe your application at sales@boreasa.com.
