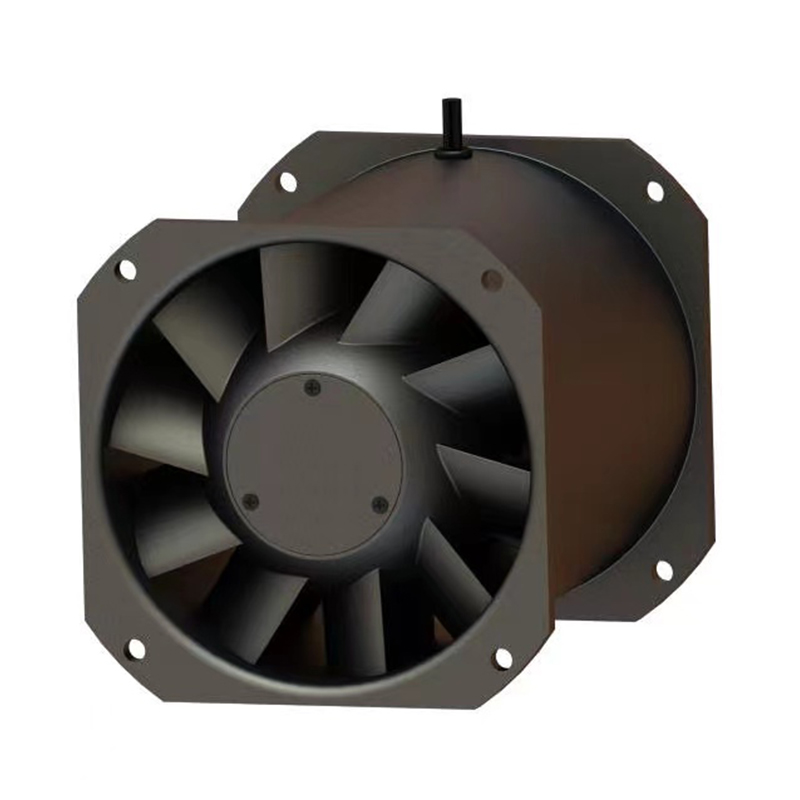

VA146178-A380(3)-1 Vane-Axial Fan

Availability:

VA146178-A380(3)-1 Vane-Axial Fan


  • Technical Data

The Technical Data Of VA146178-A380(3)-1
Motor system
 Speed Control
 Rated Voltage
 Frequency Rated Curren Rated Power Rated Speed
MSM065030-380 380VAC 380VAC 400Hz 3.8A 2000W 11500rpm
Bearing system Air Flow Max. Static Pressure Noise Level Operating Temperature Range Weight Life Expectancy
BALL B/S 1030CFM 390mmH₂O 98dB -30℃~85℃ 4.9kg 30000H

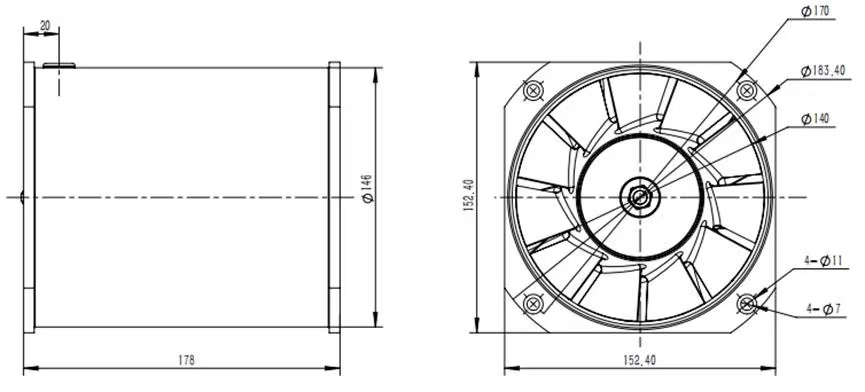

  • Dimensions

图片 37
