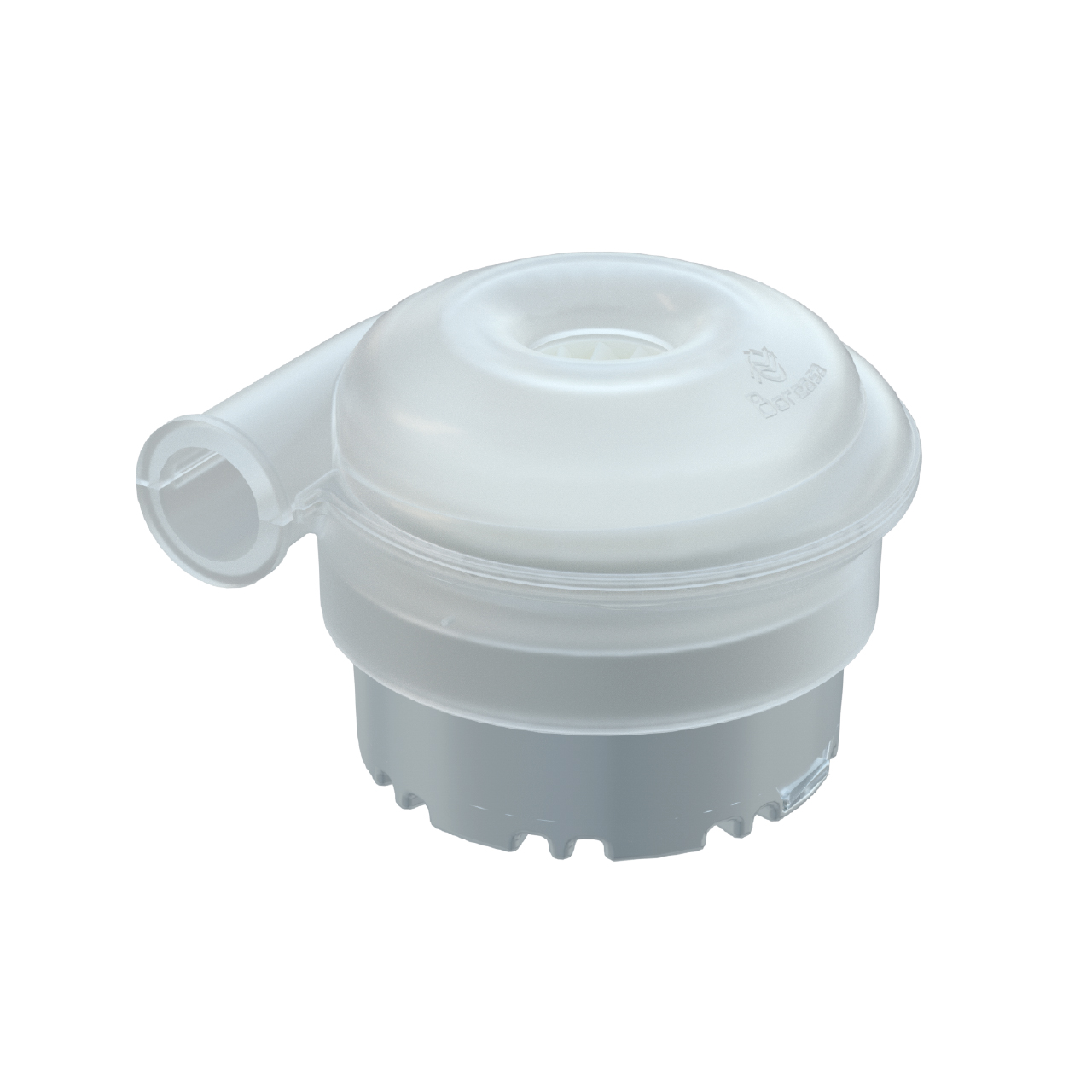

C65S1
Features：
Dimensions: 62 (63) x 65 x 48 mm
Offered in 3 performance levels (L2, L3, L4).
At nominal voltage (24 V), the maximum pressure at zero flow is around 4'200 Pa (L2) ～ 6'950 Pa (L4), and the maximum flow at free flow is around 400 lpm (L2) ～ 500 lpm (L4).
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 9'000 Pa at zero flow (L4), or 560 lpm at free flow (L4).
Designed for tubeless inlet.
Available in 12 VDC on demand.
This blower is also available in sensor-less version (without Hall sensors).
This blower uses a brushless motor and needs a driver to operate.
Dimensions:
PQ at 24 V:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
