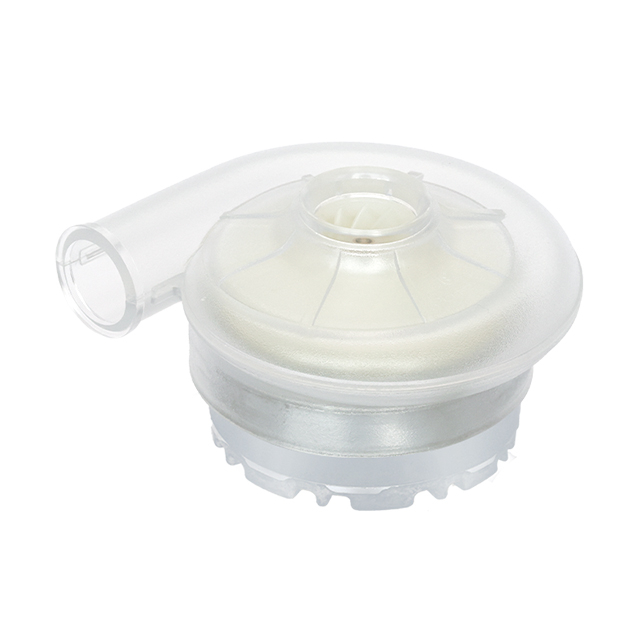

C75MS1
Features：
Dimensions: 70 (70.5) x 75 x 48 mm
Available in 4 performance level (L2, L3, L4 and L5).
At nominal voltage (24 V), the maximum pressure at zero flow is around 4'780 Pa (L2) ～ 9'700 Pa (L5), and the maximum flow at free flow is around 515 lpm (L2) ～ 650 lpm (L5).
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 12'700 Pa at zero flow(L5), or 730 lpm at free flow (L5).
Available in 12 VDC on demand.
This blower is also available in sensor-less version.
This blower uses a brushless motor and needs a driver to operate.
Dimensions:
PQ at 24 V:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
