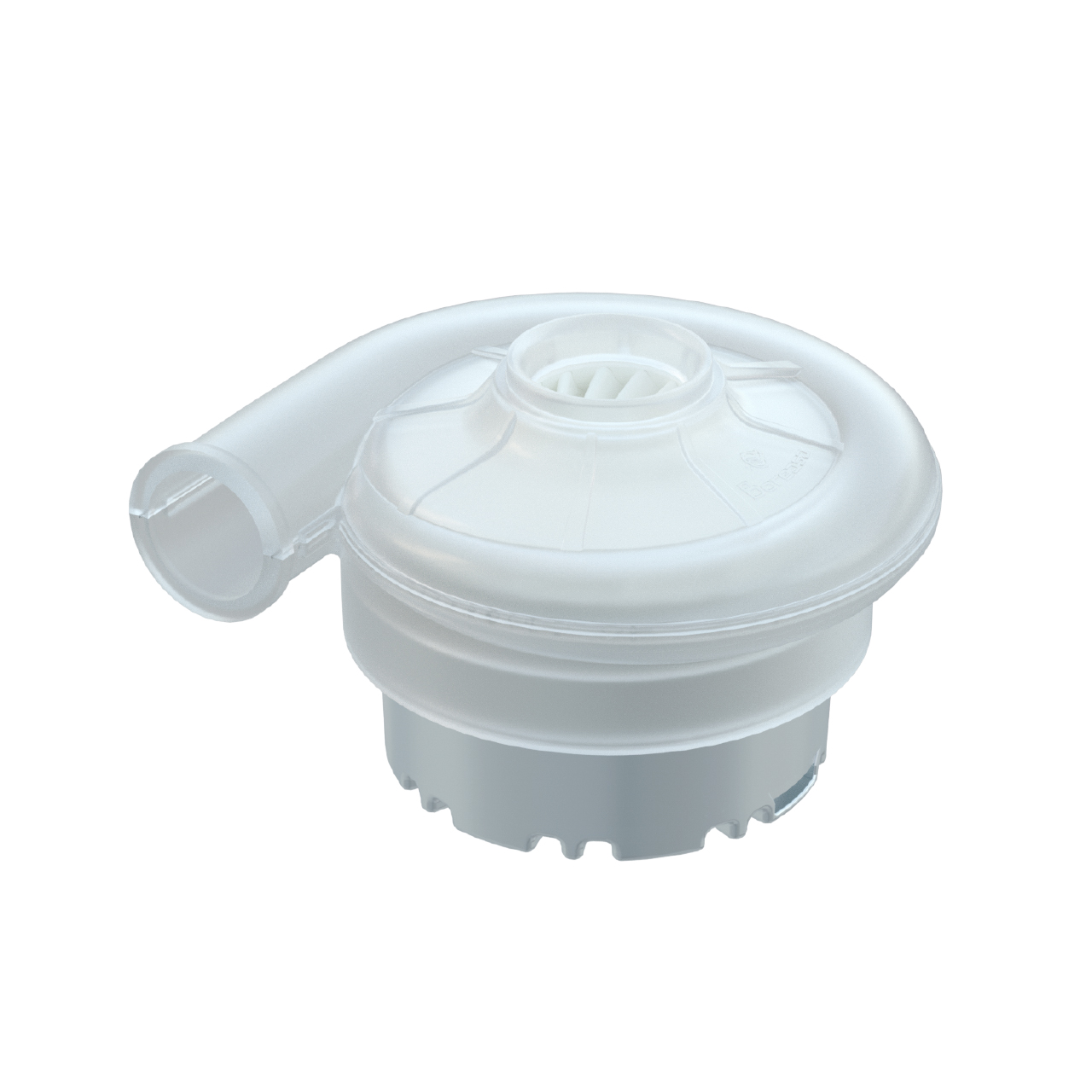

C75MS1-04
Features：
Dimensions: 70 (70.5) x 75 x 48 mm
At nominal voltage (24 V), the maximum pressure at zero flow is around 5'500 Pa, and the maximum flow at free flow is around 510 lpm.
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 7'100 Pa at zero flow, or 570 lpm at free flow.
This blower is also available in sensor-less version.
This blower has an integrated driver.
Dimensions:
PQ at 24 V:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
