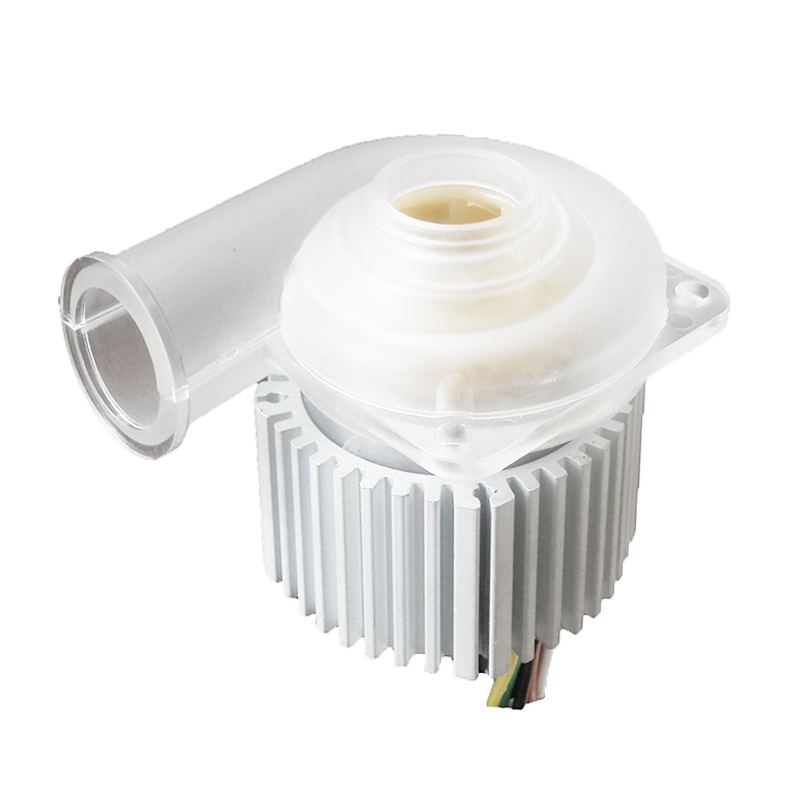

C55H1-04 Series Blower
Features：
Dimensions: 50.4 x 54.5 x 50.3 mm
At nominal voltage, the maximum pressure is in the 3'373 ~ 4'560 Pa, and the maximum flow is in the 217 ~ 260 LPM
It can be pushed to close to 4'820 ~ 5'860 Pa (zero flow), and more than 472 ~ 540 LPM (free flow)
It is available in 12 VDC and 24 VDC, and may also be ordered in 36 VDC or 48 VDC
Dimensions:
PQ:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact us and describe your application at sales@boreasa.com.
