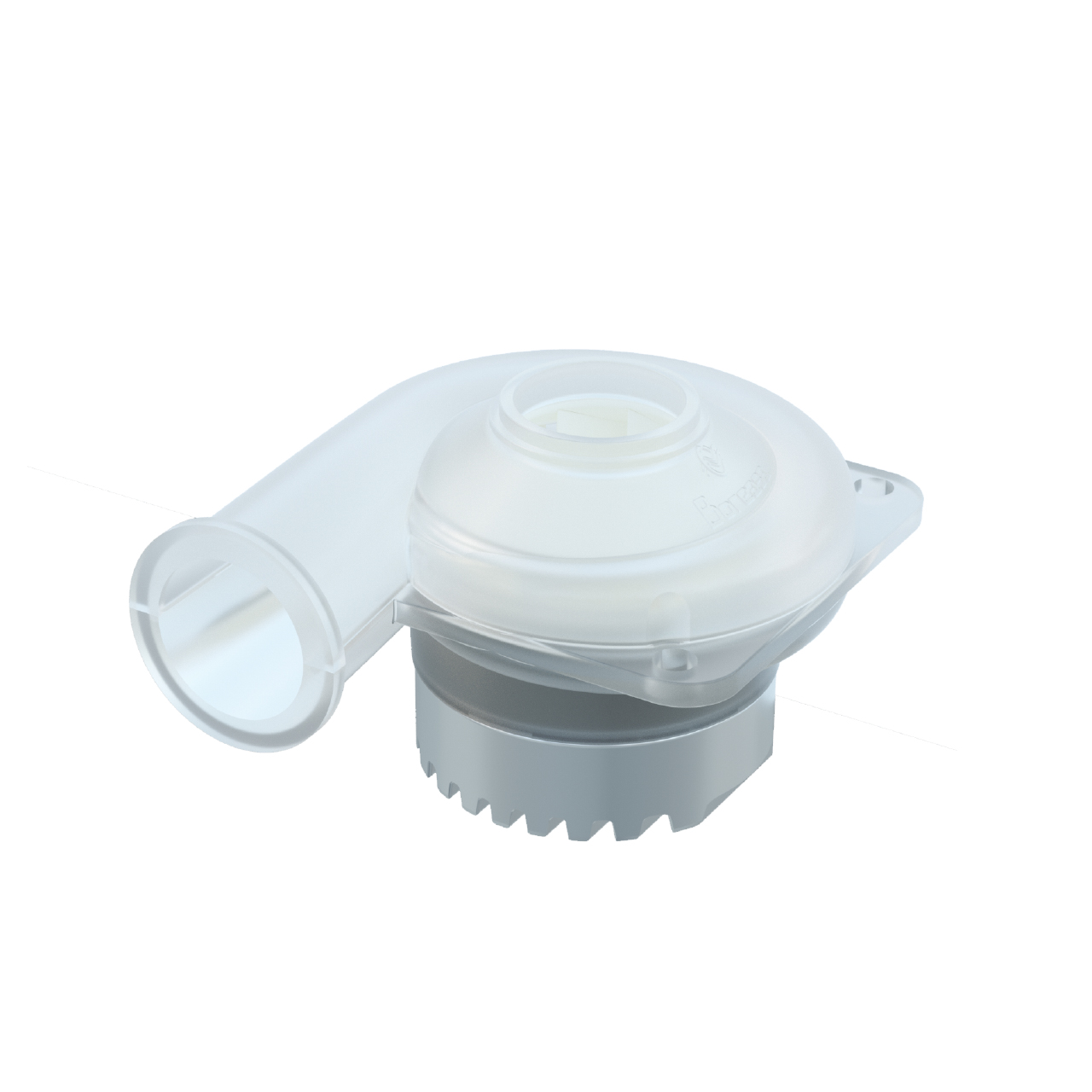

C55H1

A small but powerful blower capable of high flow for the size.
  • 5'500

  • 510

Availability:
Quantity:

C55H1


Features:

  • Dimensions: 50.5 (65.5) x 54.5 x 40.5 mm

  • At nominal voltage (24 V), the maximum pressure at zero flow is around 5'500 Pa, and the  maximum flow at free flow is around 510 lpm.

  • Blowers can be run at higher voltages for short periods to reach a higher performance,  such as 7'100 Pa at zero flow, or 570 lpm at free flow.

  • Available in 12 VDC on demand.

  • This blower uses a brushless motor and needs a driver to operate.


Dimensions:

02-C55H1-01结构图


PQ at 24 V:

02-C55H1-24PS-01-L6


For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
