C55H1-04

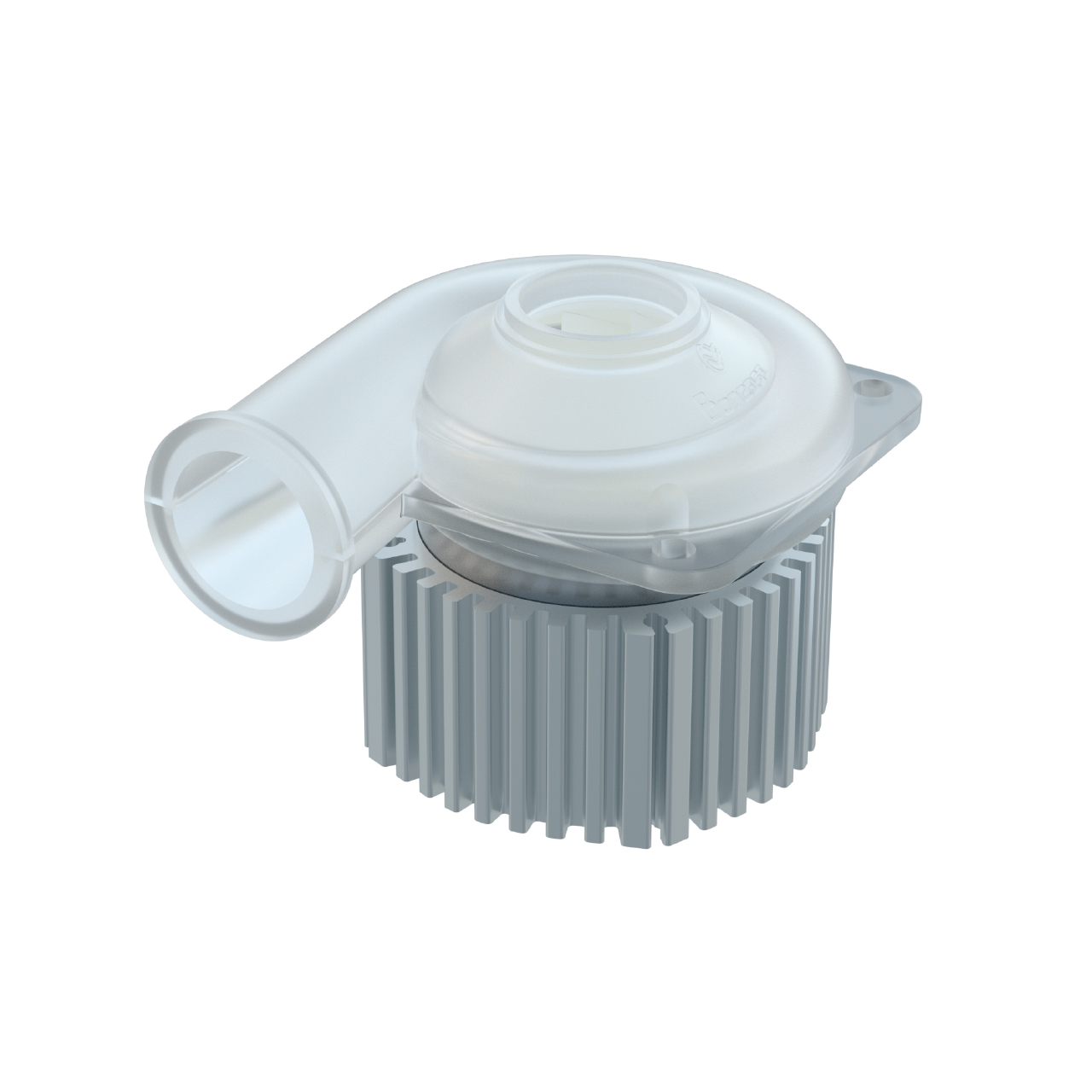

A small but powerful blower capable of very high performances with internal driver.
  • 5'860

  • 540

Availability:
Quantity:

C55H1-04


Features:

  • Dimensions: 50.4 x 54.5 x 50.3 mm

  • At nominal voltage, the maximum pressure is in the 3'373 ~ 4'560 Pa, and the maximum flow is in the 217 ~ 260 lpm

  • It can be pushed to close to 4'820 ~ 5'860 Pa (zero flow), and more than 472 ~ 540 lpm (free flow)

  • It is available in 12 VDC and 24 VDC, and may also be ordered in 36 VDC or 48 VDC


Dimensions:

技术


PQ:

风机_C55H1-12PS-04

PQ-20


For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
