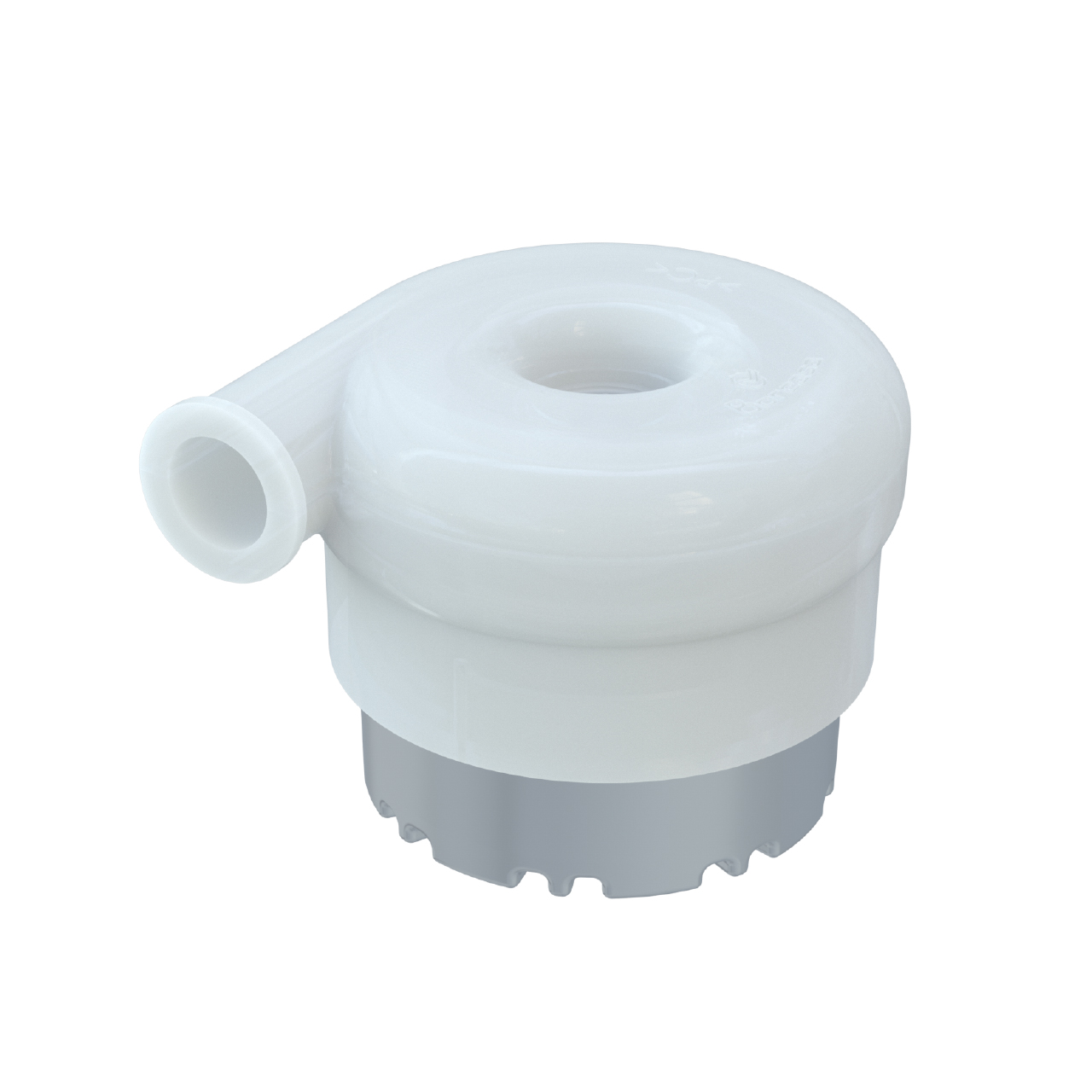

C60S1-04
Features：
Dimensions: 61.5 (65.7) x 61.5 x 50.8 mm
Available in 2 performance levels (L2 and L4).
At nominal voltage (24 V), the maximum pressure at zero flow is around 4'680 Pa (L2) ～ 7'750 Pa (L4), and the maximum flow at free flow is around 415 lpm (L2) ～ 460 lpm (L4).
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 10'000 Pa at zero flow (L4), or 515 lpm at free flow (L4).
Available in 12 VDC on demand.
This blower has a driver integrated.
Dimensions:
PQ at 24 V:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
