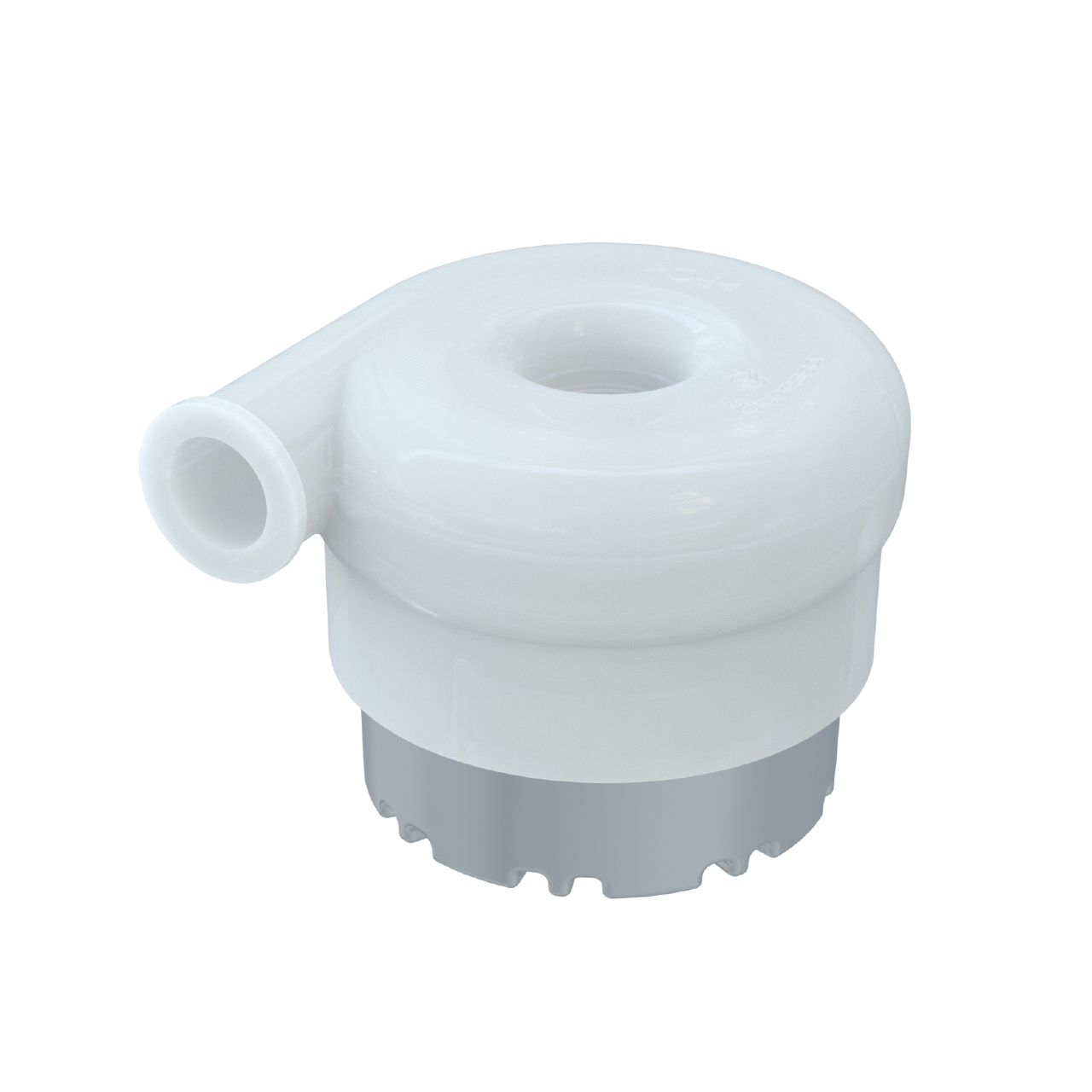

C60S1
Features：
Dimensions: 65.7 x 61.5 x 50.8 mm
At nominal voltage (24 V), the maximum pressure at zero flow is around 4'030 Pa (L2) ～ 5'250 Pa (L3), and the maximum flow at free flow is around 355 lpm (L2) ～ 395 lpm (L3).
Blowers can be pushed for short period to the maximum recommended voltage (28 V) for a higher performance: the maximum pressure at zero flow is around 6'800 Pa (L3), and the maximum flow at zero flow is around 440 lpm (L3).
Available in 12 VDC on demand.
This blower is also available in sensor-less version (without Hall sensors).
Dimensions:
PQ:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
