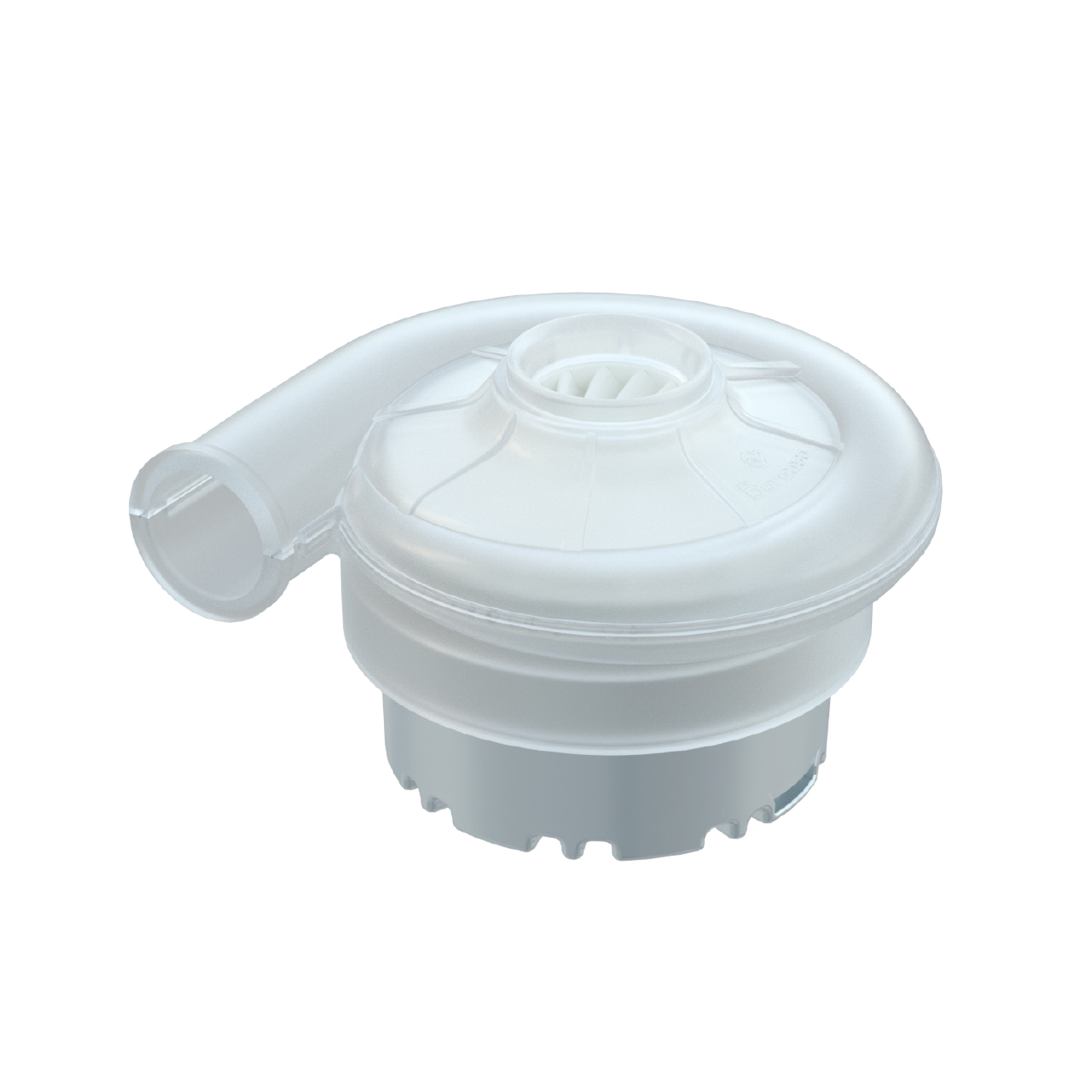

C75MS1

A medium performance blower designed for higher flow.
  • 9'700

  • 650

Availability:
Quantity:

C75MS1


Features:

  • Dimensions: 70 (70.5) x 75 x 48 mm

  • Available in 4 performance level (L2, L3, L4 and L5).

  • At nominal voltage (24 V), the maximum pressure at zero flow is around 4'780 Pa (L2) ~ 9'700 Pa (L5), and the maximum flow at free flow is around 515 lpm (L2) ~ 650 lpm (L5).

  • Blowers can be run at higher voltages for short periods to reach a higher performance,  such as 12'700 Pa at zero flow(L5), or 730 lpm at free flow (L5).

  • Available in 12 VDC on demand.

  • This blower is also available in sensor-less version.

  • This blower uses a brushless motor and needs a driver to operate.


Dimensions:

15-C75MS1-0B结构图


PQ at 24 V:

15-C75MS1-24PR-0B


For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
