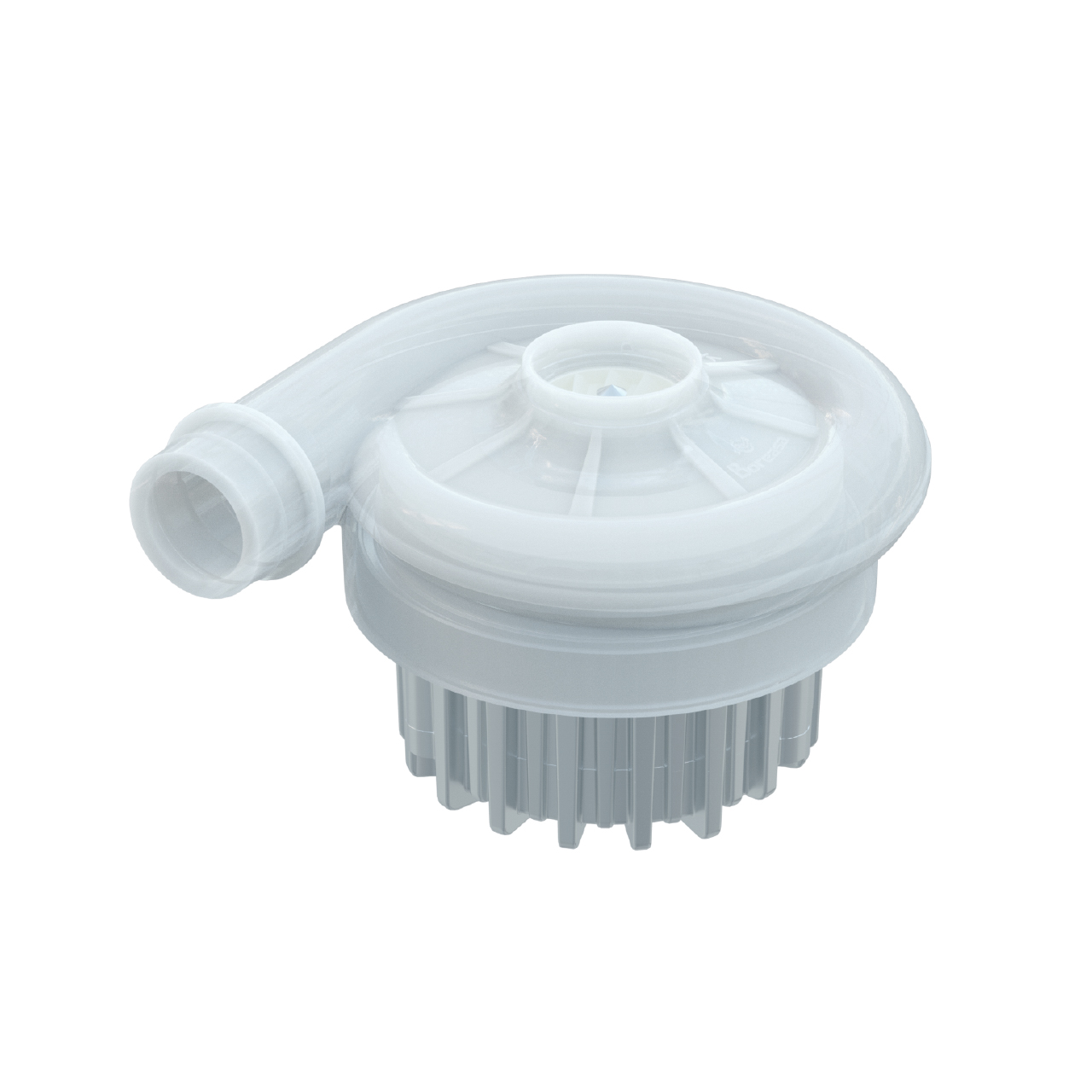

C85MS1
Features：
Dimensions: 87.0 x 85.5 x 57.5 mm
At nominal voltage (24 V), the maximum pressure at zero flow is around 13'000 Pa (L4), and the maximum flow at free flow is around 1'040 lpm (L4).
Blowers can be pushed for short period to the maximum recommended voltage (28 V) for a higher performance: the maximum pressure at zero flow is around 17'000 Pa (L4), and the maximum flow at zero flow is around 1'160 lpm (L4).
Dimensions:
PQ:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
