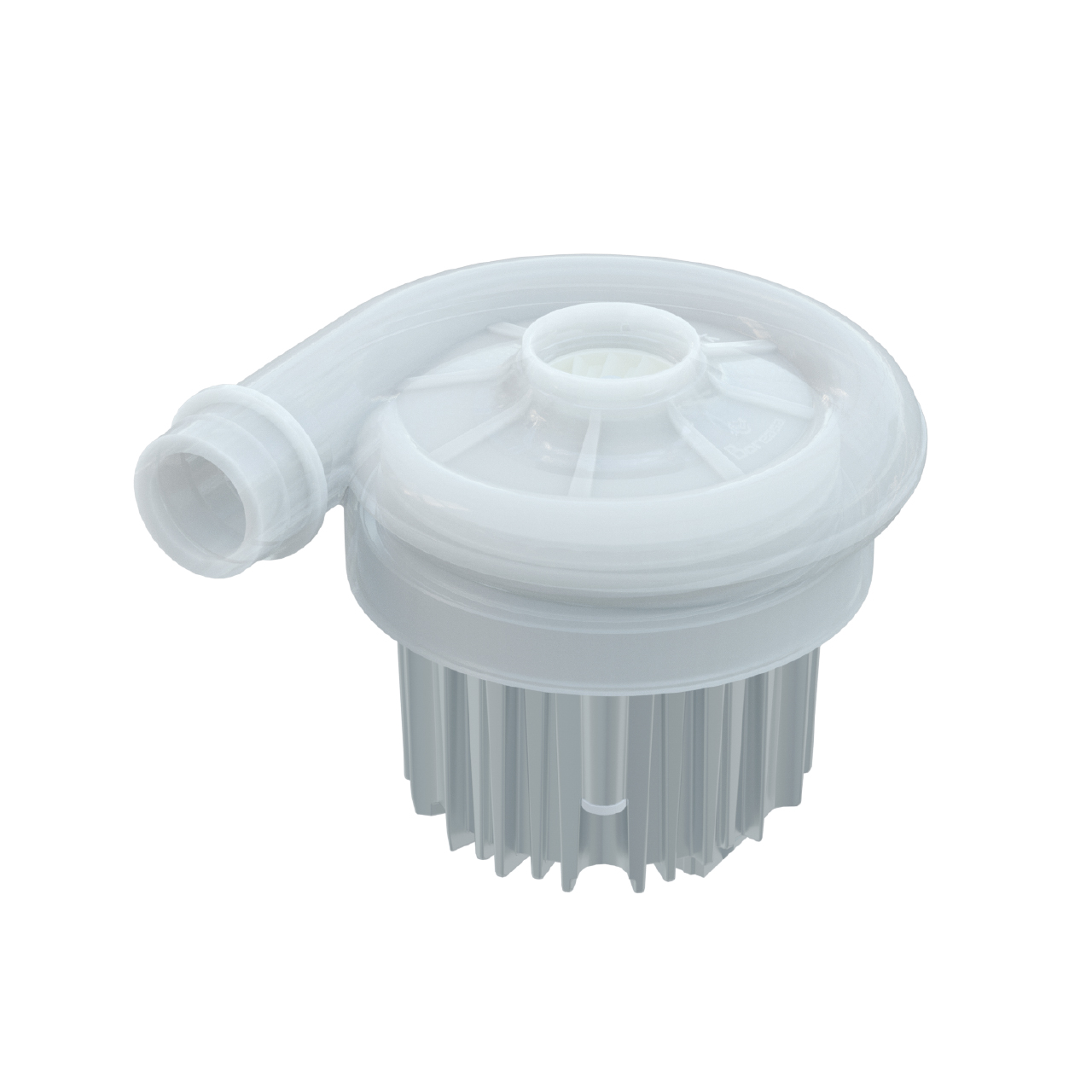

C85MS1-04

A very powerful blower designed for applications requiring high flow with integrated driver.
  • 15'200

  • 1'000

Availability:
Quantity:

C85MS1-04

COMING SOON......


Features:

  • Dimensions: 80 (87) x 85.5 x 67.5 mm

  • At nominal voltage (24 V), the maximum pressure at zero flow is around 13'300 Pa (L4) ~  15'200 Pa (L5), and the maximum flow at free flow is around 1'000 lpm (L4).

  • Blowers can be run at higher voltages for short periods to reach a higher performance,  such as 20'500 Pa (L5) at zero flow, or 1'120 lpm (L5) at free flow.

  • This blower has an integrated driver.

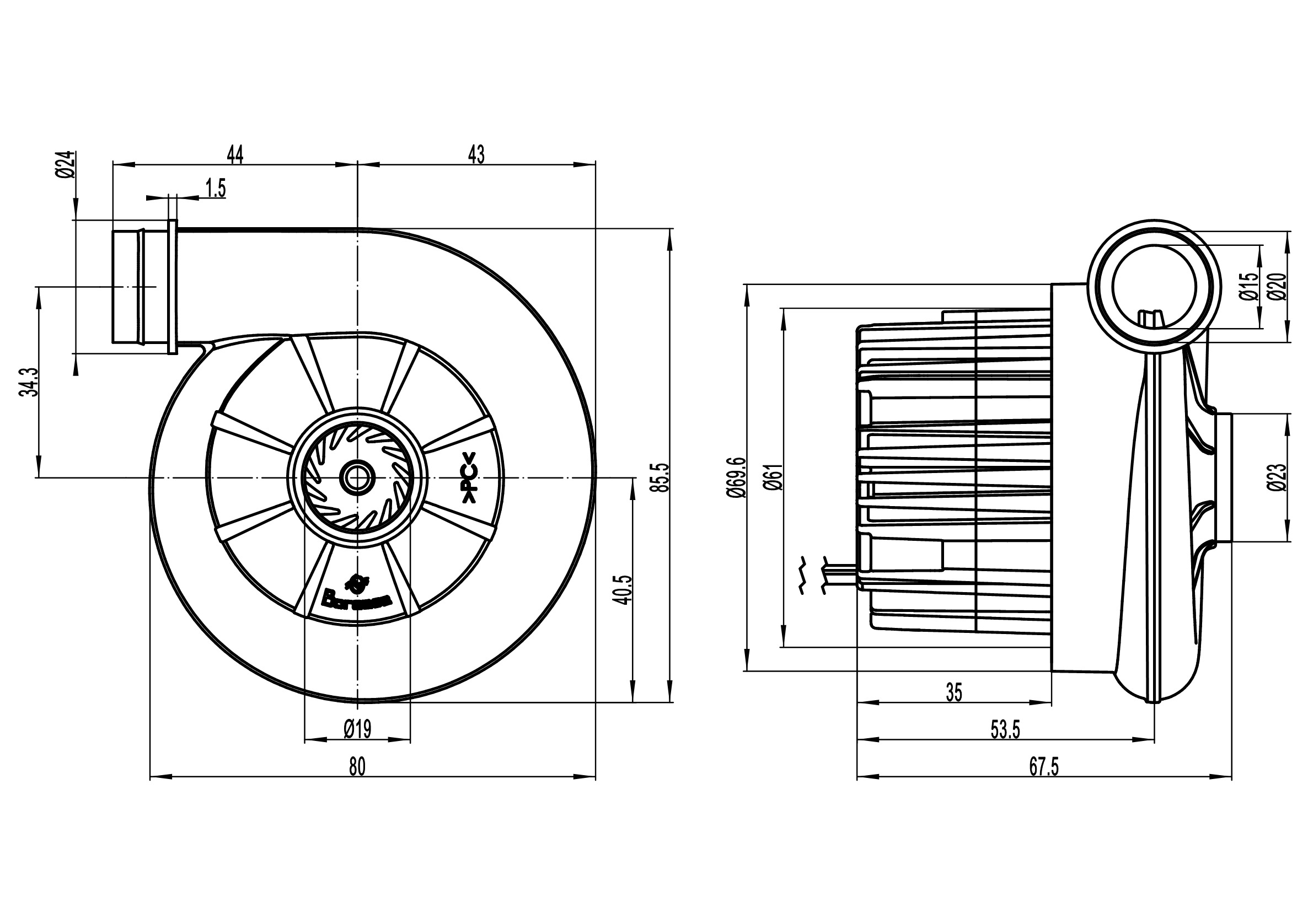

Dimensions:

C85MS1-04 规格书模型 - X1


PQ at 24 V:

C85MS1-04 PQ图 - X1


For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
