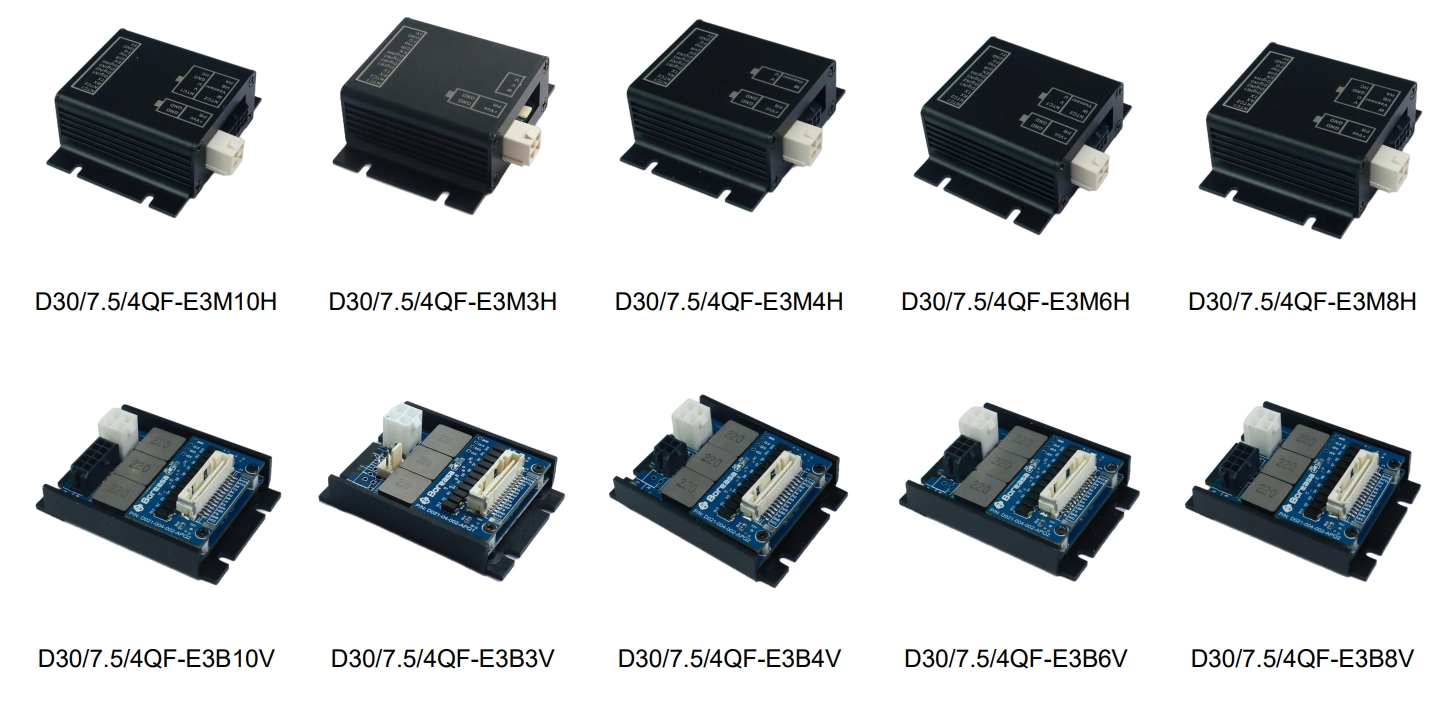

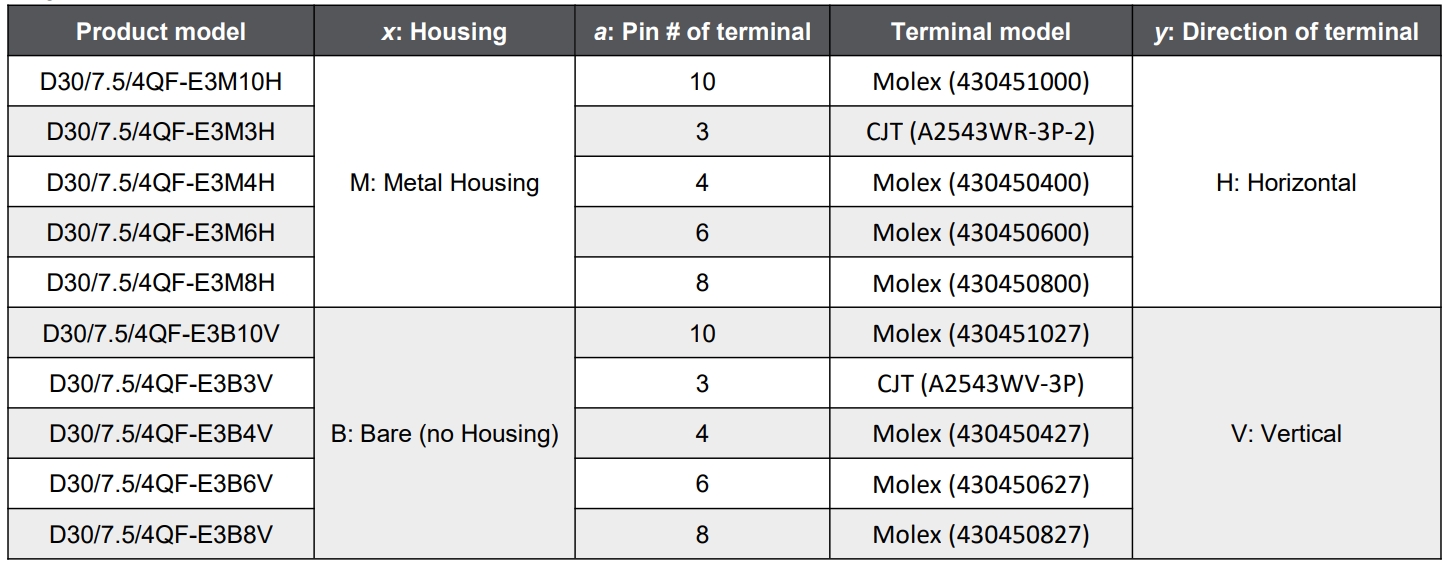

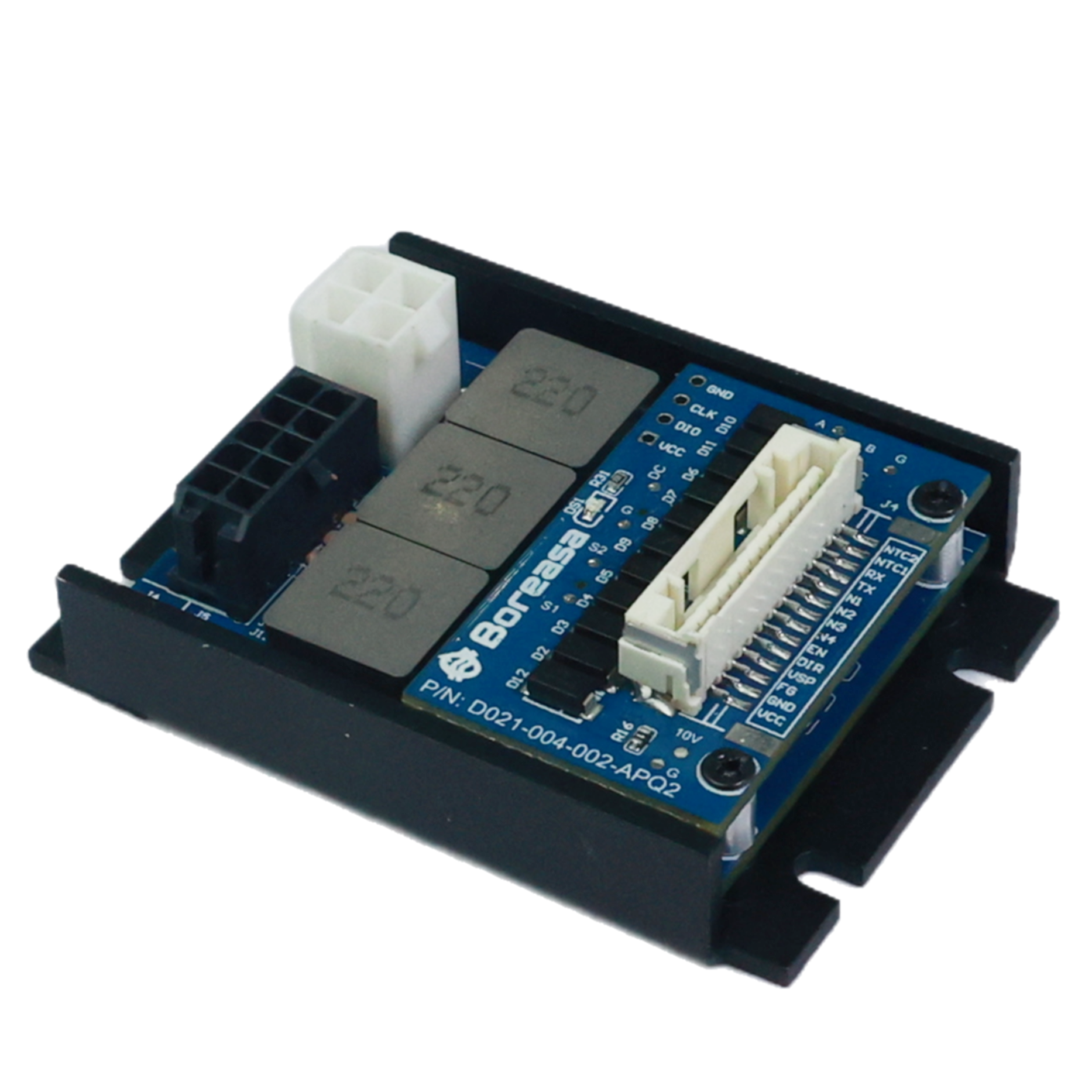

D30/7.5/4QF-E3xay
COMING SOON......
Features:
Digital speed control - operates as «closed loop» speed controller
Maximum speed 60,000 rpm (motor with 2 poles)
Set value input through external analogue voltage (0 ... +5 V)
Set value input through external PWM 200 Hz
SCI protocol available
Firmware control modes: Sensor-based trapezoidal control or Field-Oriented Control (FOC)
Built-in motor choke
Direction of rotation preset by a digital signal
The output stage can be enabled or disabled
Peak phase current limit: Fixed at 16 A
Motor speed can be monitored with the «FG» output
Protection: over-voltage, under-voltage, motor block, short-circuit
The built-in shunt regulator is designed to limit the supply voltage of the controller

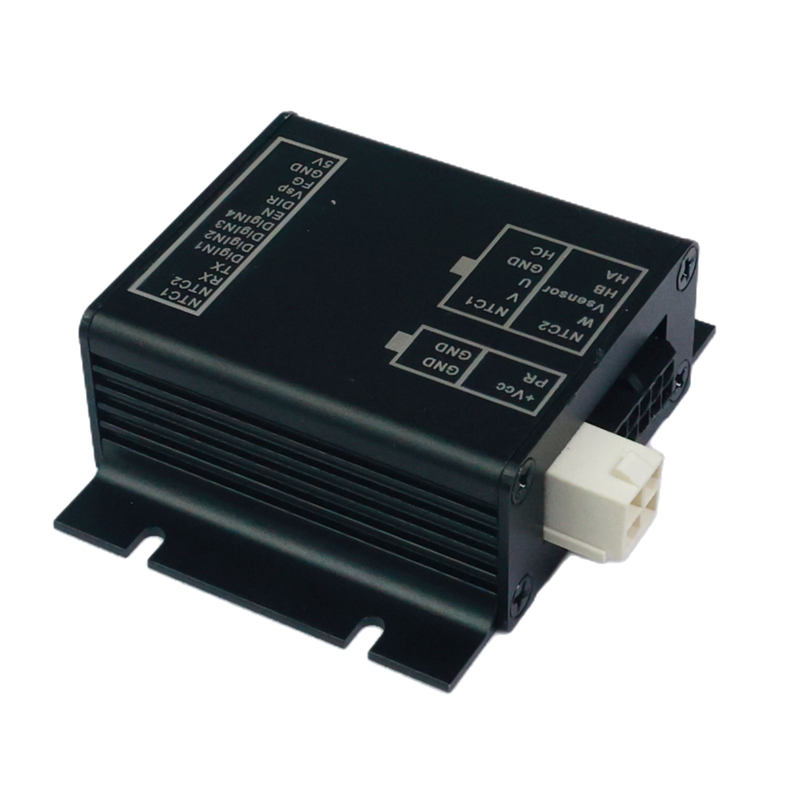

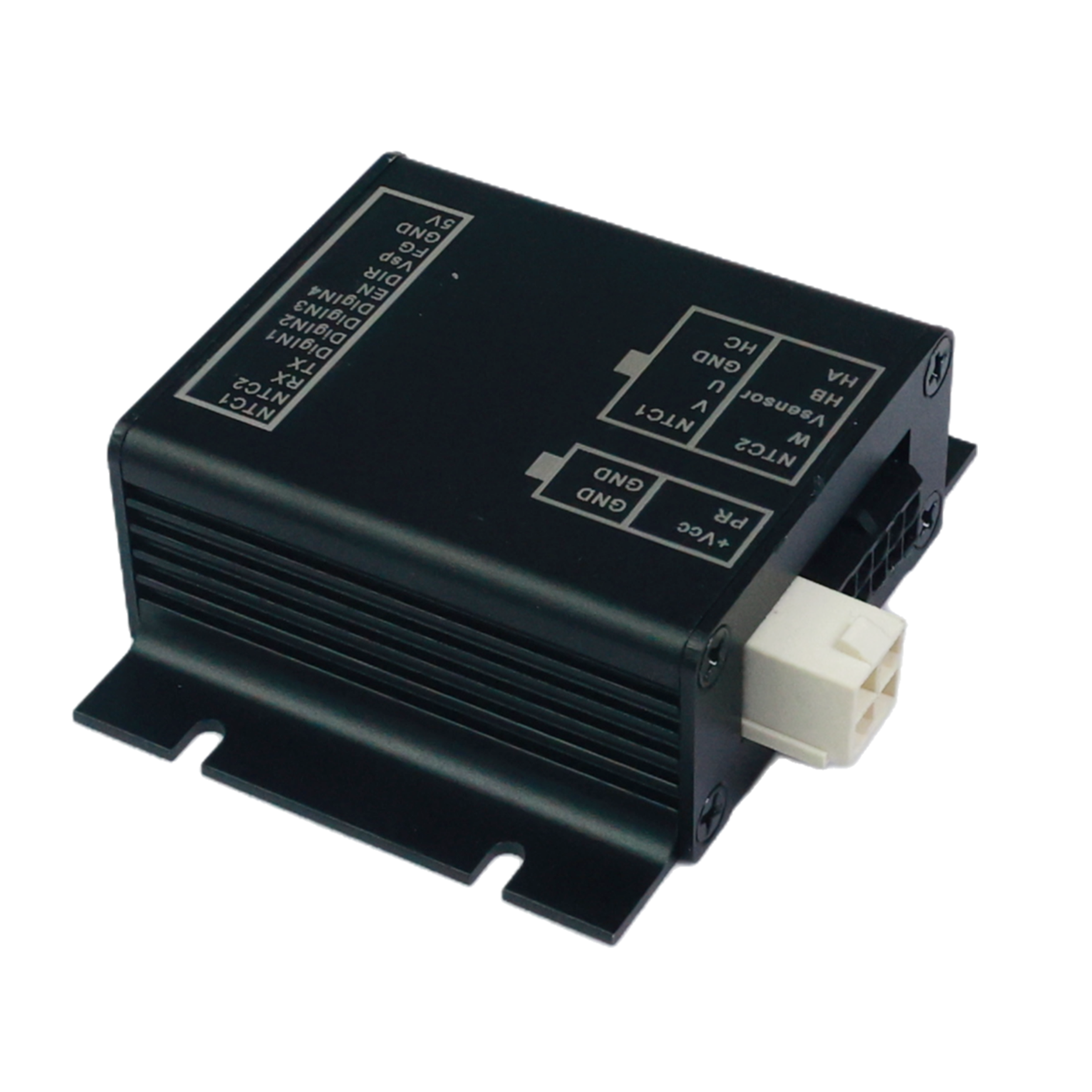

Compact size with aluminum housing
D30/7.5/4QF-E3xay Spec Sheet - A0.pdf
For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
