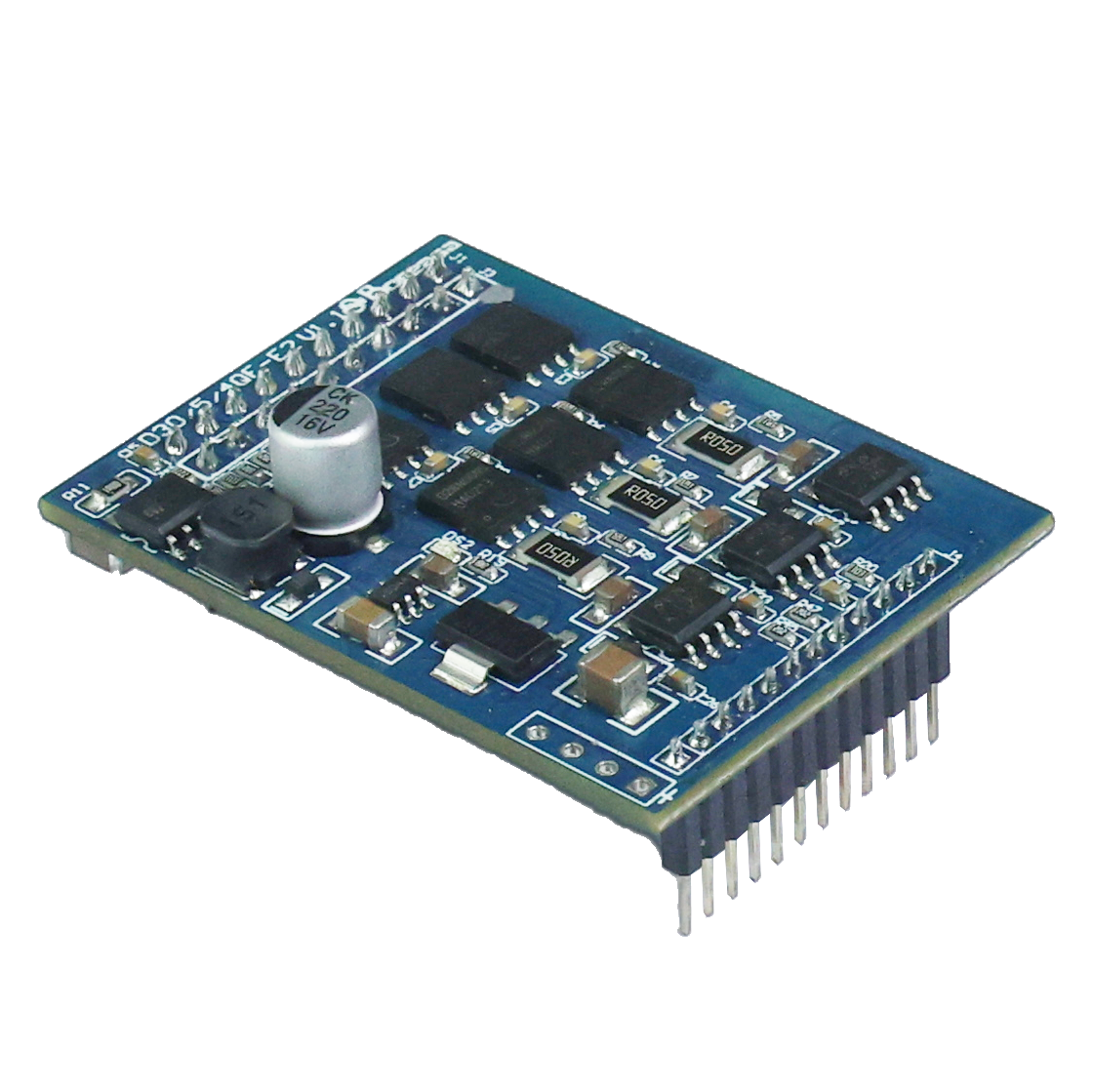

D30/5/4QF-E2
Features:
Set value input through PWM or external analogue voltage (0 ... +3.3 V)
Parameters can be set through 4 external digital inputs (DigIN)
Dual control loop: Speed and Current
Output stage can be enabled or disabled
Maximum output peak current limit adjustable up to 10 A
Motor speed can be monitored with the «FG» output
Status indication via «Ready» output
Motor blocked protection (current limit for blocked motor)
Standardized connector strip, pitch 2.54 mm and 2 mm
Configurable fix current or fix torque mode is optional
If the driver works in 4-quadrant mode, there needs to be a circuit in place to consume the brake energy
For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.

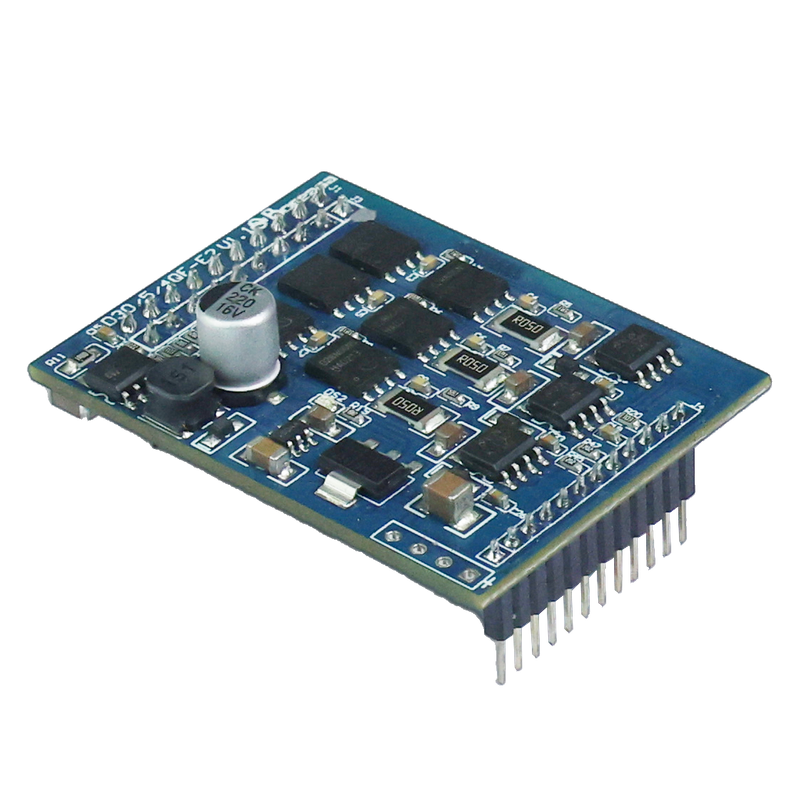

D30/5/4QF-E2
