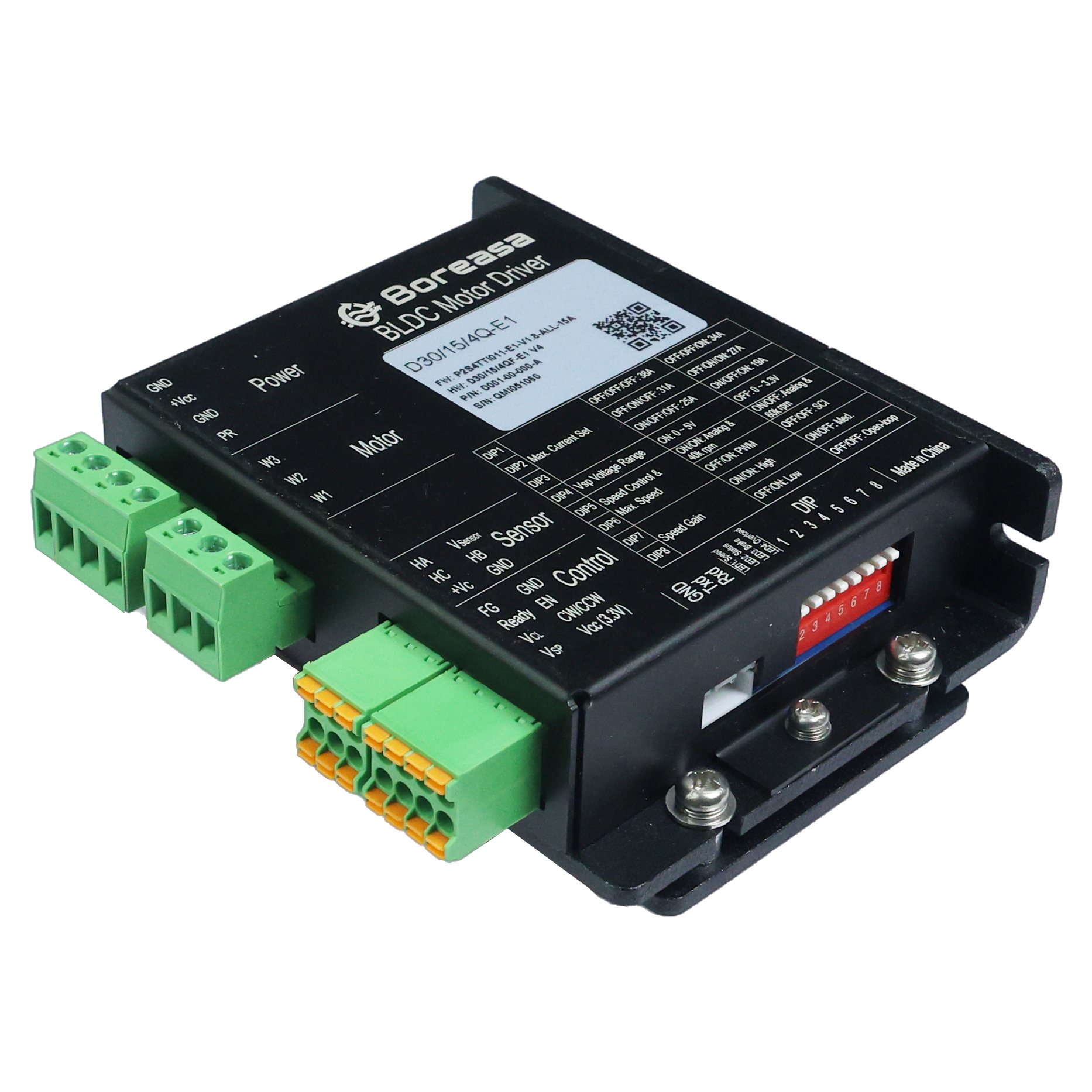

D30/15/4Q-E1
Features:
Input voltage: 15 – 36 VDC, maximum continuous output current: 15 A, short-term acceleration output current 20 A
Parameters can be set through an 8-bit DIP switches
Supports setting value inputs through analog 0 - 5 V or 0 - 3.3 V, PWM and SCI
Speed: open loop and closed loop optional
Protection functions: Hall fault, overvoltage protection, undervoltage protection, open circuit protection, braking protection and stall protection
Maximum speed: 60'000 rpm (unipolar pair)
Motor speed can be monitored via the «FG» output
Status indication via «Ready» output
Supports direction and enables control
For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.

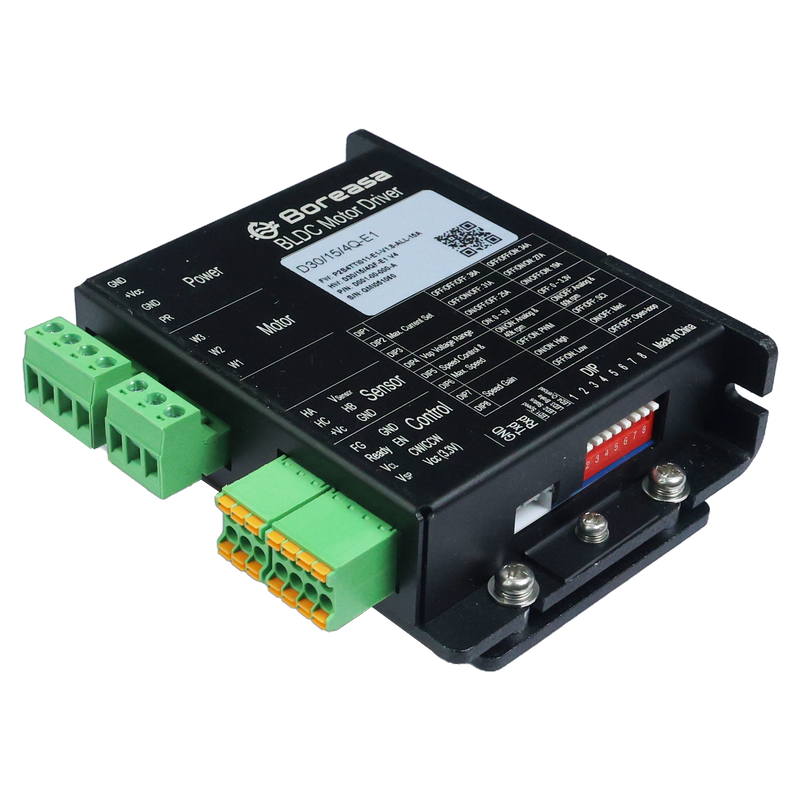

D30/15/4Q-E1
