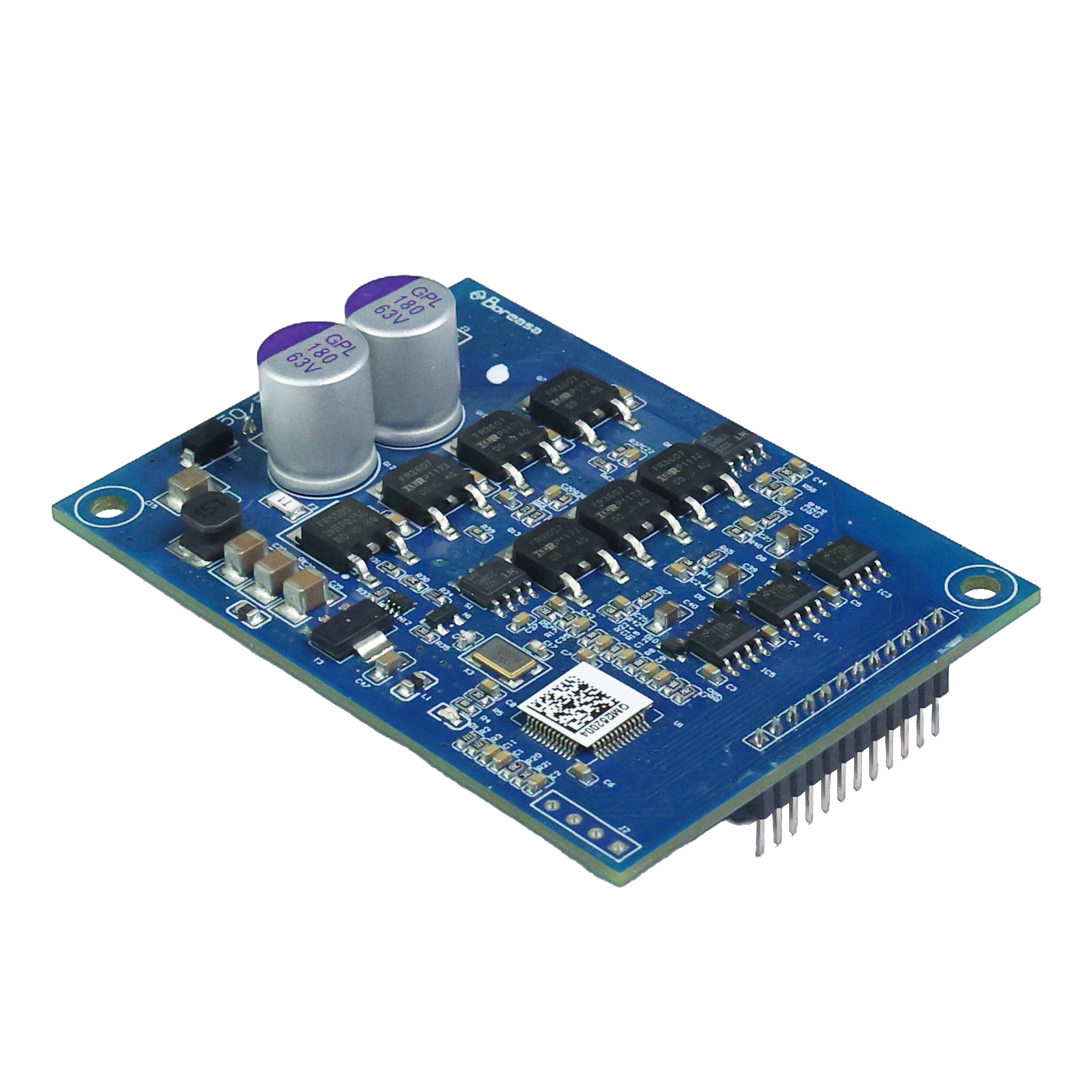

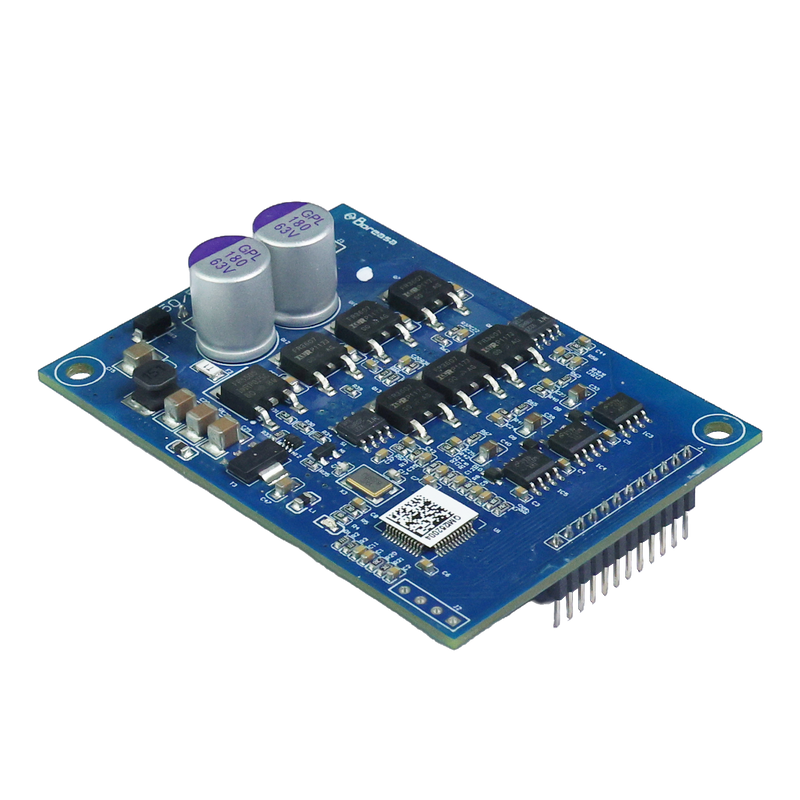

D50/5/4QE-E2
Features:
Digital speed control - operates as «closed loop» speed controller
Maximum speed 60,000 rpm (motor with 2 poles)
Minimum speed 200 rpm (motor with 2 poles)
Set value input through external analogue voltage (0 ... +3.3 V)
Set value input through external PWM 200 Hz
Modbus protocol available
Direction of rotation preset by a digital signal
The output stage can be enabled or disabled
Motor speed monitoring via «FG» output
Status indication via «Ready» output
Protection: over-voltage, under-voltage, short-circuit
Standardized connector strip with 2.54 mm and 2 mm pitch
The built-in shunt regulator is designed to limit the supply voltage of the controller
D50/5/4QE-E2 Spec Sheet - A1.pdf For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
