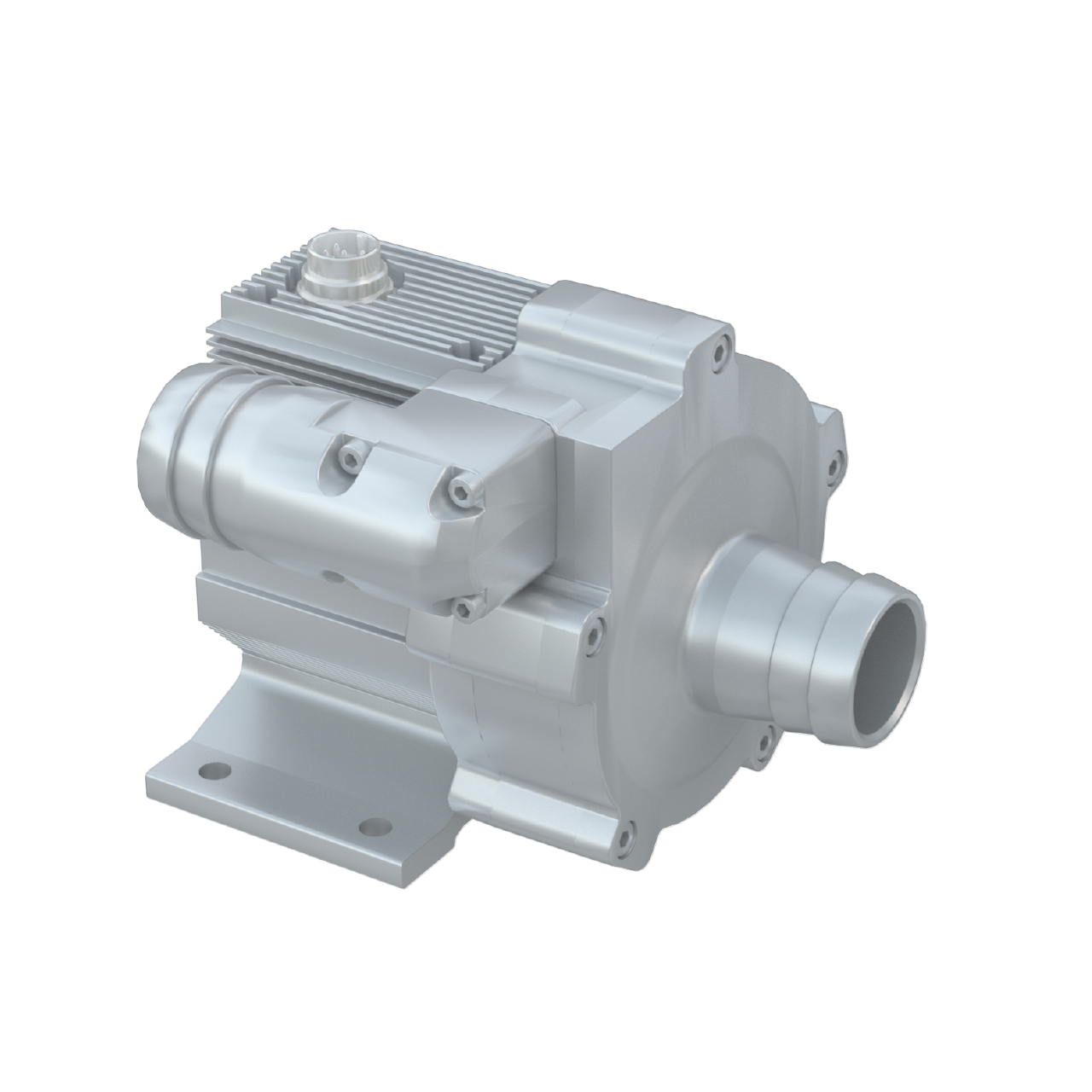

C105H2-04
COMING SOON......
Features：

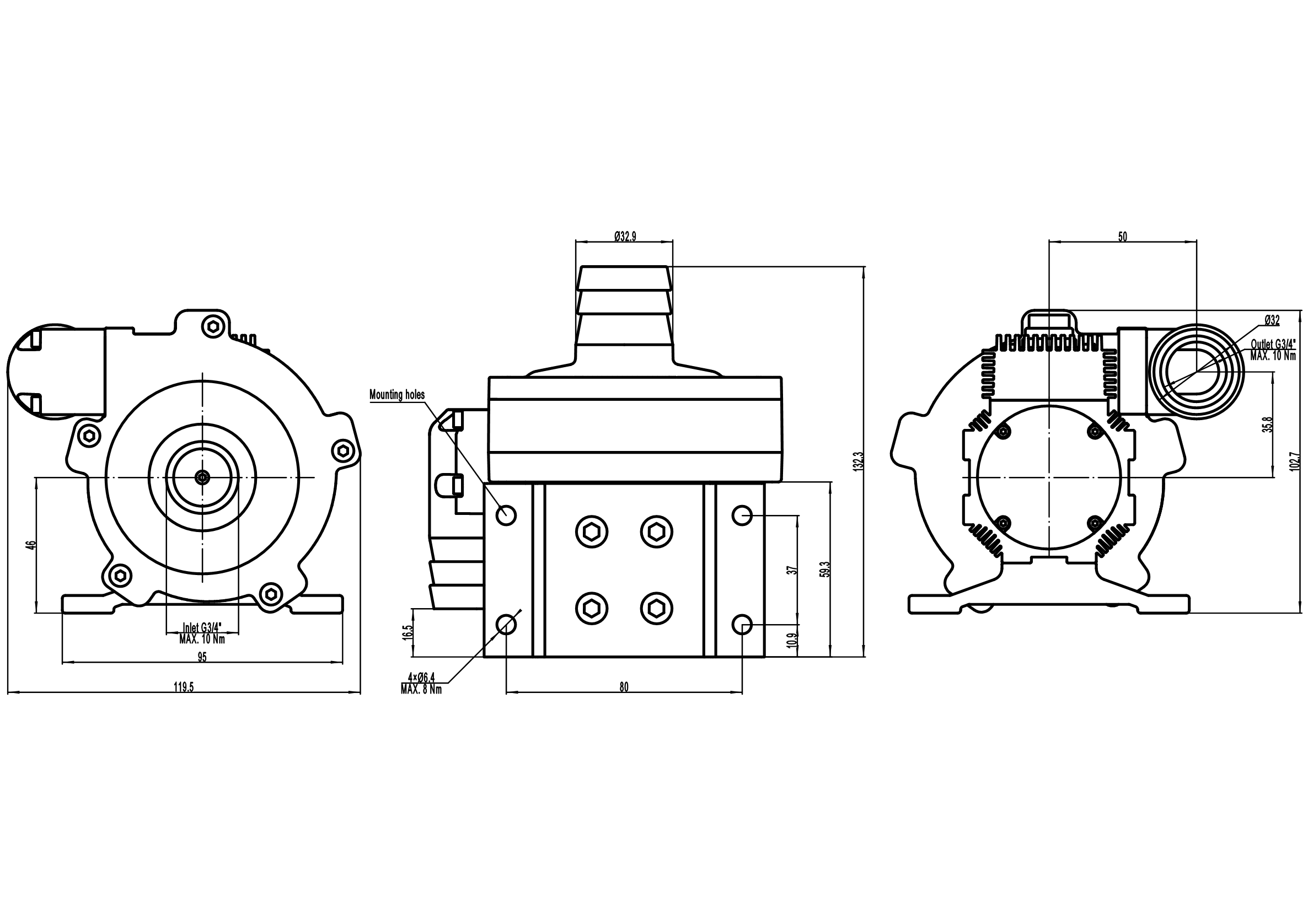

Dimensions: 95 (119.5) x 102.7 x 132.3 mm
At nominal voltage (24 V), the maximum pressure at zero flow is around 18'500 Pa, and the maximum flow at free flow is around 845 lpm.
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 24'000 Pa at zero flow, or 980 lpm at free flow.
This blower has an Aluminum housing.
Modular blower with 4 positions of outlet available, and 3 positions of driver.
This blower has an integrated driver.
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
