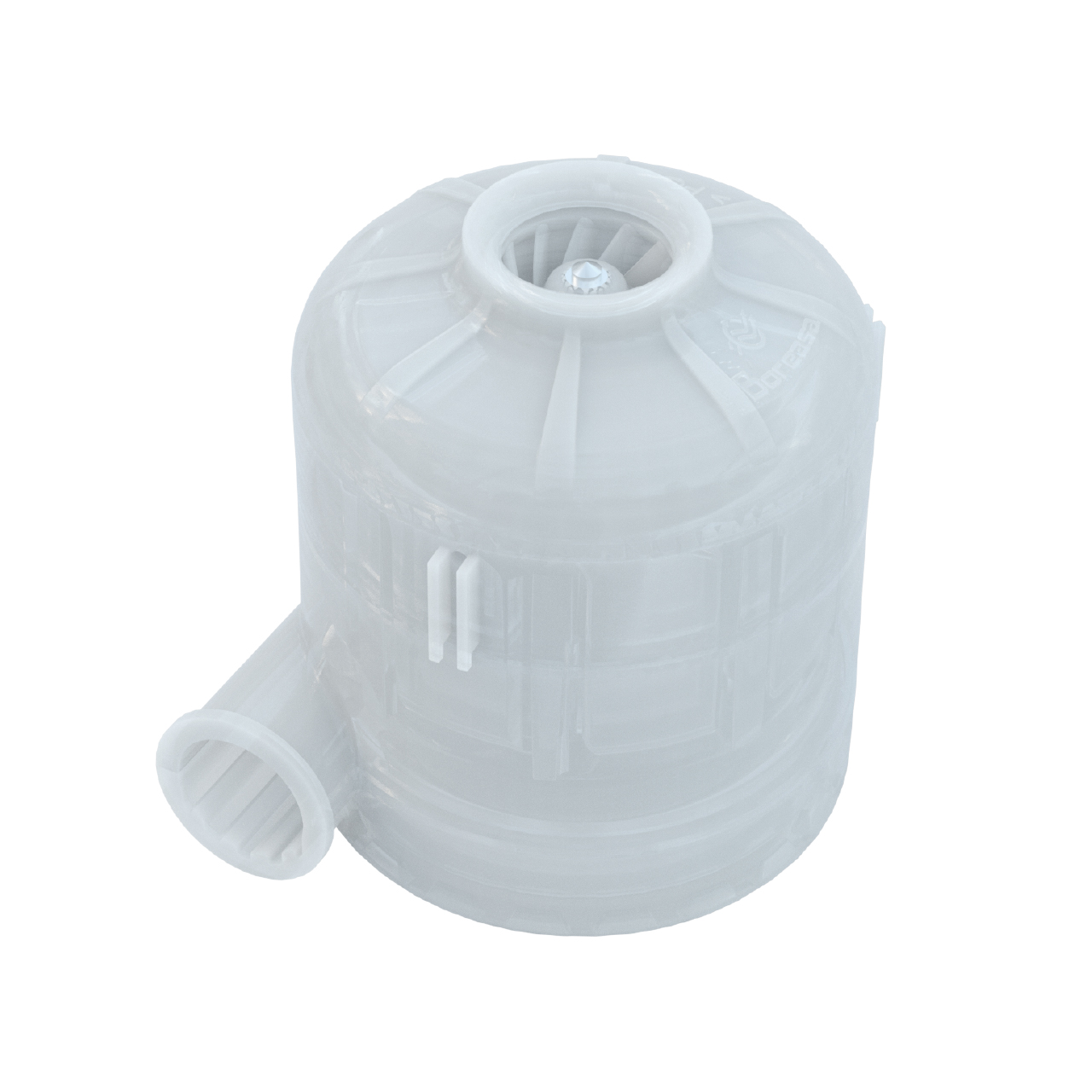

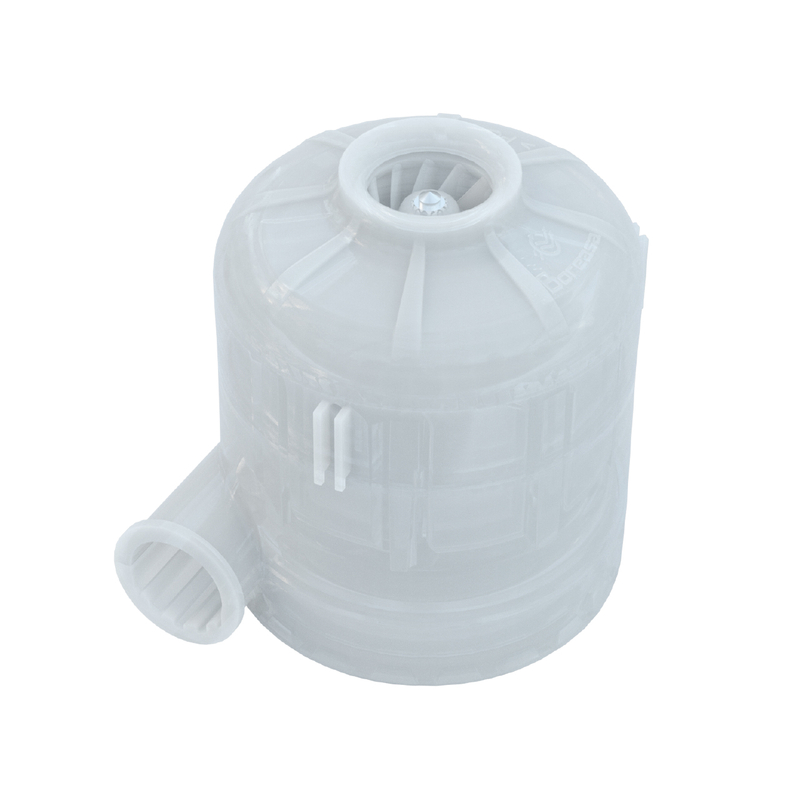

C54I2
Features：
Dimensions: 54.0 (59.5) x 54.0 x 65.0 mm
Available in 2 performance levels (L0 & L3).
At nominal voltage (24 V), the maximum pressure at zero flow is around 5'500 Pa (L0) ～ 10'200 Pa (L3), and the maximum flow at free flow is around 330 lpm (L0) ～ 430 lpm (L3).
Blowers can be run at higher voltages for short periods to reach a higher performance, such as 13'200 Pa at zero flow (L3), or 480 lpm at free flow (L3).
Only available in sensorless.
Available in 12 VDC on demand.
This blower uses a brushless motor and needs a driver to operate.
Dimensions:
PQ at 24 V:
For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
