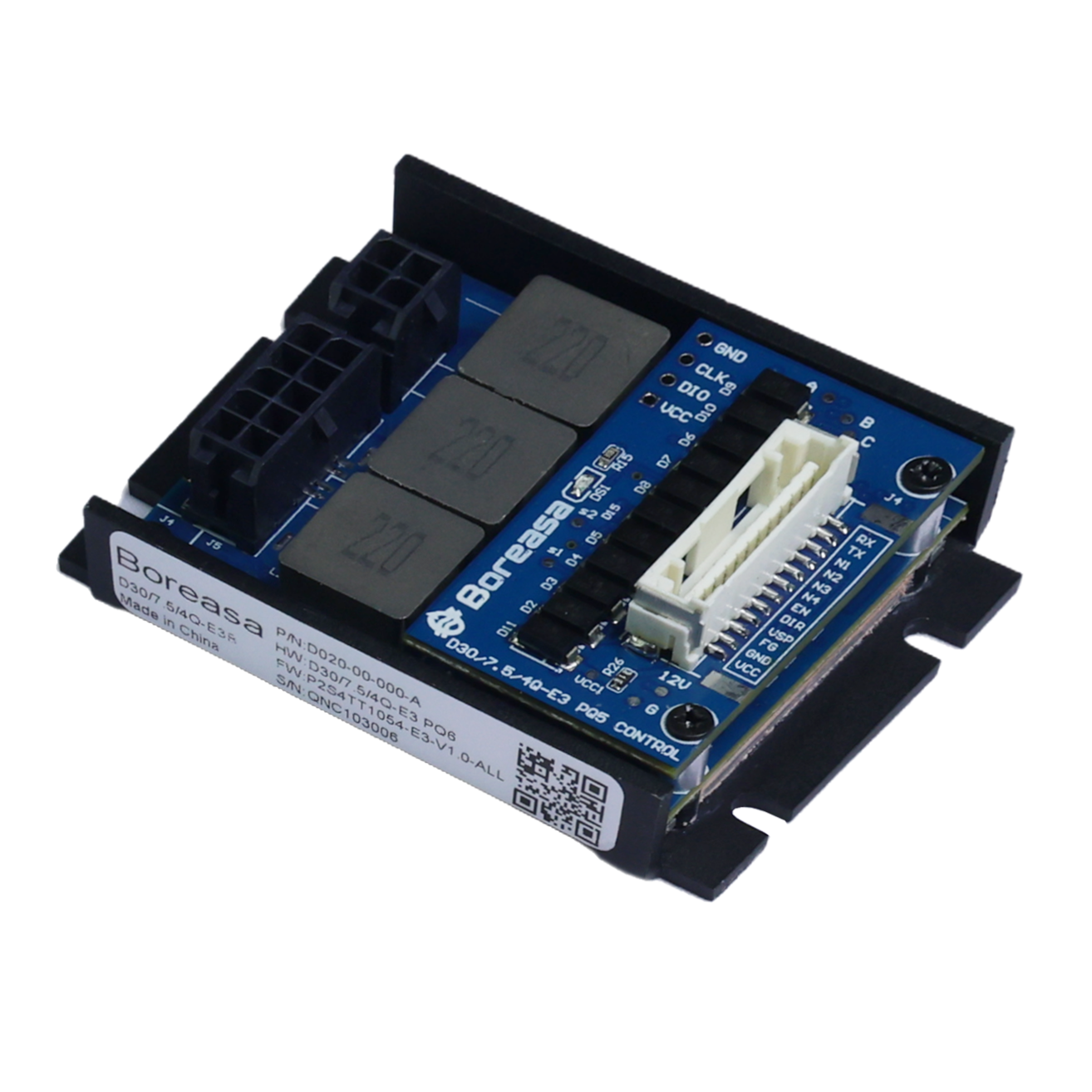

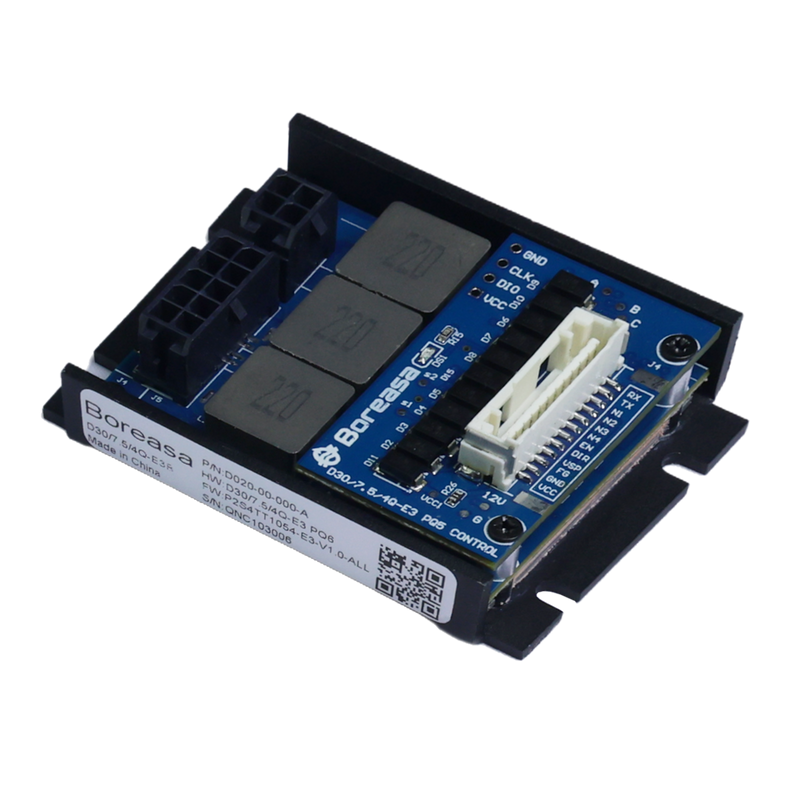

D30/7.5/4Q-E3B

D30/7.5/4Q-E3B

Features:

• Digital speed control - operates as «closed loop» speed controller

• Maximum speed 60,000 rpm (motor with 1 pair of poles)

• Set value input through external analogue voltage (0 ... +5 V)

• Set value input through external PWM 200 Hz

• SCI protocol available

• Direction of rotation preset by a digital signal

• The output stage can be enabled or disabled

• Maximum output current limit adjustable up to 16 A

• Motor speed can be monitored with the «FG» output

• Motor blocked protection (current limit for blocked motor)

• Protective functions: overvoltage and short circuit protection

• The built-in shunt regulator is designed to limit the supply voltage of the controller

• Compact size with aluminum housing

For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application.
